Internet Pinmap Instructions

The internet pinmap helps maintain the isolation areas necessary to prevent cross pollination in seed crops. It is designed to replace the paper pinmap in the Yuma extension office, providing new features and improved record keeping. The pinmap does not enforce isolation areas. It only provides information and tools to assist you. It is your responsibility to maintain seed separation. This document contains instructions for how to use the pinmap to claim and check isolation areas. It begins by addressing some key points concerning the pinmap and then provides detailed instructions for how to operate the internet pinmap interface.

Key Points:

The pinmap has been upgraded. Be aware that the interface has been streamlined, made more powerful, and is operated slightly differently than the 2004 pinmap. Last year's pins can be viewed from the new pinmap.
The gateway to the Internet Pinmap is http://ag.arizona.edu/minu/pinmap
How an isolation claim is defined.
- Placing a pin stakes a claim for an isolation area centered around that pin.
- Pins have time/date stamps linked to them, as well as who pushed the pin.
- The software does not prevent multiple pins from being placed the same isolation area. You must verify that your isolation does not conflict with others-- the software is only a communication tool.
- The pin with the earliest timestamp has rights to the isolation area.
- Crops that do not cross pollinate can be placed in the same isolation area without conflict.
- Pushed. This is the status when the pin is first inserted. It claims the isolation area for a contract expected with a grower at that location. The timestamp of this pinning is what determines who has rights to the isolation area.
- Removed. At any time a pin in the pushed or signed status can be removed. This irreversibly loses the claim to that isolation. In order to maintain a record of all pinning activity, a pin is actually disabled instead of removed. Records of the pinning remain in our internal database, the timestamp that the pin was removed is used to replace the initial timestamp.
A link to the complete history of all pinning operations is provided on http://ag.arizona.edu/minu/pinmap

Training vs Operational Pinmaps
There are two internet pinmaps. It is important not to get them confused.

The Training/Demonstration Pinmap is for training and demonstrations. The pins placed on this map do not claim isolations areas but are only for your practice. Use this page to learn how to use the pinmap, or to test operations you are unsure of. Entry is not password protected. Test accounts (and their passwords) are provided when you visit the site.
The Operational Pinmap is for actually claiming isolation areas. It is password protected. You need to obtain your account and password in order to have access to this map. Placing pins on this map is not allowed until the pinning season is officially started.

Access to the pinmap.
The pinmap is password protected. There are two levels of participant access to the pinmap: viewing and pinning.

The gateway password and login allows a participant to enter the pinmap site. This password and login is shared by all participants.
A unique seed company password allows a seed company to enter a pin or change the status of a pin the seed company has already entered. This password is used at when a pin is being placed, after the seed company has already entered the pinmap site using the gateway password.
The only user who can remove or change a pin is the user who placed the pin.

Using the Interface

For a pdf figure illustrating the main interface, click on http://ag.arizona.edu/minu/pinmapstuff/cheatfig.pdf

When you visit http://ag.arizona.edu/minu/pinmap you will first see a gateway page with text and links to the training pin map. Clicking on the link to the training pin map will bring you to the map itself. For the training pinmap there is no gateway login or password. At this point on the operational pinmap you will be asked to provide the gateway login and password. It may take few minutes to load the website the first time that you visit. Subsequent visits will be much quicker.

Login Screen

See the figure below for the main page layout you will see when you first log in to the pin map. On the left side of the window you should see a set of icons, or tools that you can choose from. In the center of the screen you should see a satellite image of Yuma which will serve as the pin map. In the center of each Township and Range, identification numbers are shown. On the right side of the screen you should see a list of layers and the "Refresh Map" button. Below that is a legend to the pin map that shows the pin color of each crop type. You may need to scroll down to view the legend.

Note that the new pinmap looks slightly different from the old one. Pins have rings around them that indicate the seed company associated with the pin. The layers on the right hand side have been streamlined. There is a new layer showing the seed companies and a new layer displaying the old pin coverage. There are new buttons on the right hand side of the screen, the logout button and the gateway page button. These buttons will be discussed later.

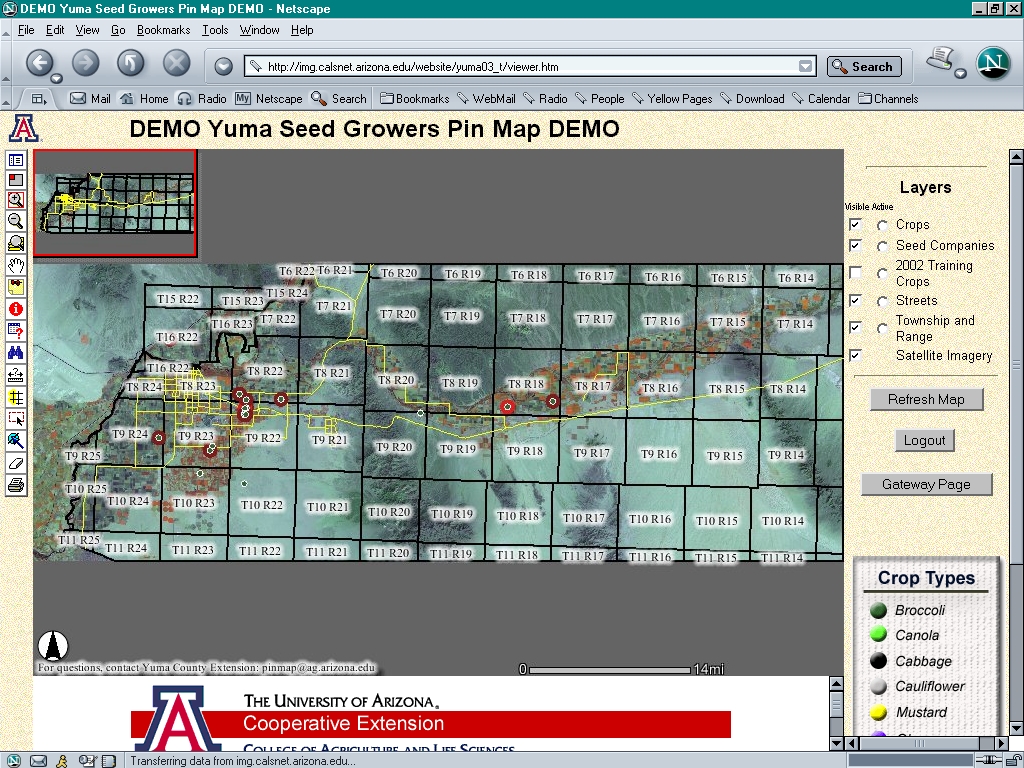

Main Page View

Tools You Will Need to Use

Use the mouse to click on the picture of the magnifying glass with a + symbol inside of it to zoom in on the map. Notice that new information becomes available as you zoom in closer, such as sections and detailed streets. Section numbers will appear in the center of each section once you zoom in close enough. To zoom out, use the magnifying glass tool with a minus symbol in the center. The last magnifying glass can be used to zoom out to the complete view. The hand tool can be used to pan the map.

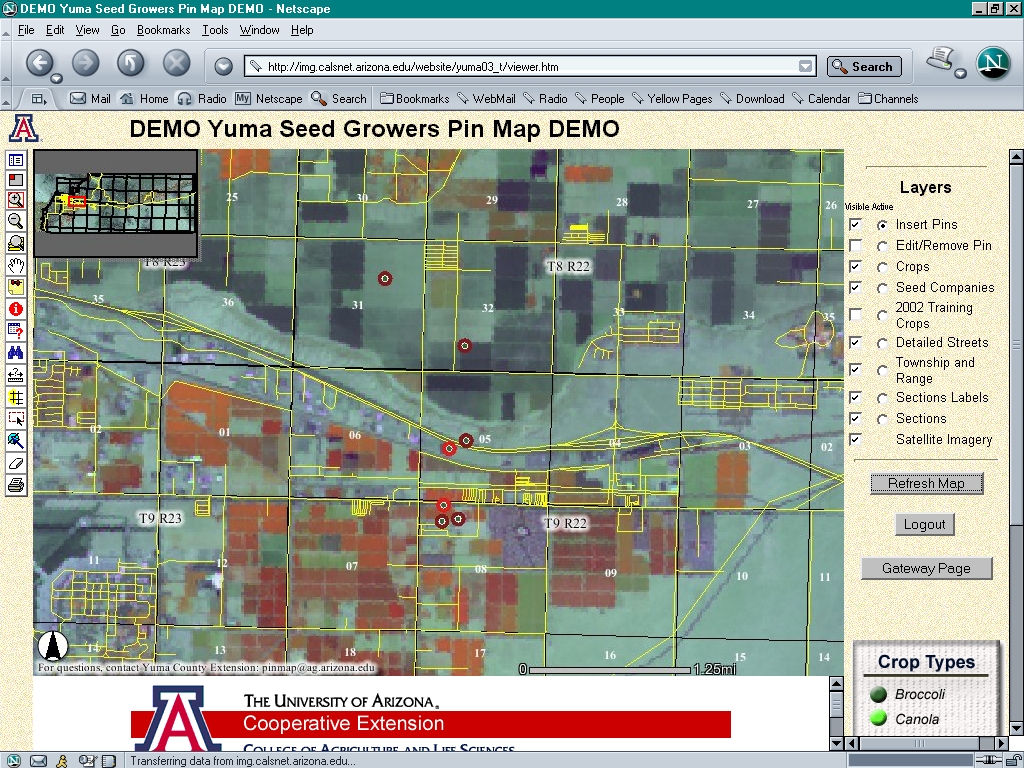

Closeup View

You can control which layers are visible (what layers are drawn on the map) as well as choose which layer is active (to be used for pinning, queries, or other operations). Visible layers are chosen by clicking in the "visible" box next to the layer name and then clicking on the refresh map button located below the list of layers. You may need to scroll down to see this button. Clicking on the circle between the "visible layer box" and the list of items will make that layer active. Although many layers can be visible simultaneously, only one layer can be active at a time.

You can view and query the old pinmap records by clicking in the box next to the 2002 crops and then clicking on the refresh button. You can turn off the rings indicating seed company by deselecting the checkbox next to the seed company layer and then clicking on the refresh button. The seed company "rings" are not actually rings, but instead are larger circles that sit below the crops layer. You can verify this by making the crops layer invisible while keeping the seed company layer visible.

If you would like to view the gateway page for any reason (such as to view the pinning history or instructions), you can click on the "Gateway Page" button. This will open a new gateway page window. Note that this window may become hidden behind other windows, so if the "Gateway Page" button does not seem to work, hide some of your other windows and see if it has been hidden.

Perhaps the most useful tool is the information tool or red i with a circle around it . If you select this tool and click on a feature on the map (such as a pin), all information related to that point will be displayed below the map. You may need to scroll down to see all of the information. Other tools can be used for building queries, measuring distances, and generating a printable version of the map you are viewing.

An additional web interface allows all of the pinning history to be viewed. That interface can be reached through a link on http://ag.arizona.edu/minu/pinmap

How to Claim an Isolation:

Selecting an Unclaimed Isolation:

The internet pinmap does not enforce where pins are placed. Instead, it provides information about when a pin was placed and who inserted it. It is your responsibility to maintain seed separation.
We suggest that you make any crops that could cross-pollinate visible by clicking in the visible box next to each of them and make other crops invisible so that they do not clutter the map. Make sure to click on the refresh map button to redraw your new map that only contains crops that could potentially conflict.
Use the pinmap viewing tools (discussed earlier) to locate and zoom in on a location that is sufficiently far from pins representing crops crops that could cross-pollinate. The most useful operations are zoom, measure distance, and get information, The query and buffer tools can be used to assist in the search for a free isolation area.
Once you have identified a location where you would like to claim an isolation, proceed to the next step, placing a pin.

Placing a Pin:

For pin placement you must zoom in enough for the "Insert Pins" layer to appear on the right side of the screen. This helps insure accurate pin placement. Increasing the accuracy of the paper pin map (and the 2002 map), an 10 acre (or smaller) grid is used. A pin placed anywhere the grid cell will appear in the center of grid cell. Multiple pins cannot be placed in the same grid cell. Note that some grid cells are even smaller than 10 acres.

The next step in pin placement is to make the Insert Pins layer visible AND active. Make sure to click on the "refresh map" button. Next, click on the pin placement tool from the left side of the screen. The picture of a pin and piece of paper is the tool used for inserting or changing pins.

We have streamlined the pinning process. A login is not needed. Only your password is necessary. The first time you pin in a session, the computer will remember you password until you log out (or are timed out). The first time you pin for a session, a new window will appear requesting your password. Note that this window may become hidden behind the pin map. For the training version of the pin map, ten test passwords are listed. Enter a password and then click on login. Note that only seed companies will have passwords.

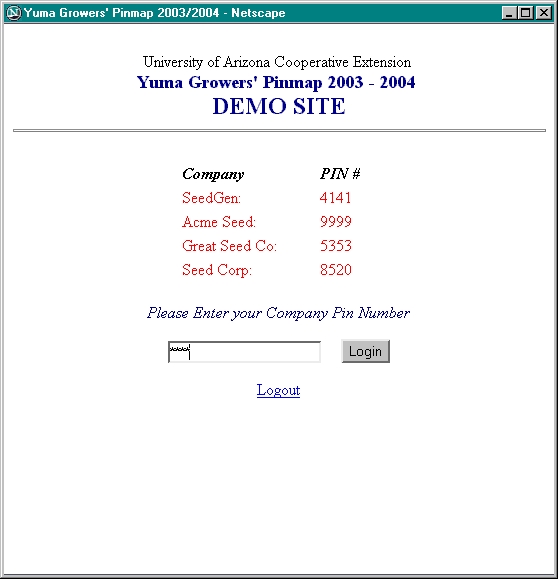

User Name and Password Window

You will now see a dialog box with the login, seed company name, Township, Range, Section, UTM Coordinates, acres to be planted, and other information. You need to select the grower and crop type from the two pull down menus. This is why you need to supply us with a list of the growers you may be working with.

Click on the submit data button on the bottom of the page. Be patient, the webserver needs to communicate with a different computer that holds the database.
Verify that your pin has been successfully placed. To finish the pinning process, click on the Refresh Map button on the right hand side of the screen (you may have to scroll down). The map should be redrawn with the new pin on it. Although many people can use the pin map at the same time, we own a limited number of licenses for the software that allows pins to be placed in the map. If too many people are placing pins at the same instant, your pin will not be inserted. It is important that you verify that your pin has been inserted into the map. If you do not see your pin, repeat the pinning process. We are currently requesting for funding for additional software licenses from the College of Agriculture.
You have now placed a pin. If you click on your recently inserted pin using the information tool, you can see the information associated with your pin. All information associated with the location you clicked on will be recovered, so you may need to scroll down in order to see your pin information. Two key attributes of the pin register the information necessary to establish an isolation area.

When you place subsequent pins (and have not logged out or timed out) you will not have to type in your password. The server remembers it. Therefore it is very important that you log out when you have finished placing pins so that others do not place pins in your name. This is done by clicking on the "Logout" button on the right side of the main map window, underneath the "Refresh Map" button.

Changing a Pin

You can remove your pins. To remove your pin, you must be zoomed in enough so that the Remove Pins layer is visible. You must make sure that the "visible" box next to the insert pins layer has a check mark in it. If not, click on that box and then click on Refresh Map. Click on the round circle next to the crop type of the pin that you would like to edit, this will make that crop active. Recall that you can scroll down in the window on the right to see the legend for colors associated with each crop type. Next, go to the left side of the window and click on the pinning tool this will now allow you to use the mouse to click on your pin and remove it.

You may see the password window (see above example). It is important to note that you can only remove pins if you have the username and password of the seed company that placed the pin. If requested, type in your password, then click on the OK button. Once you are finished the pin is marked as removed in the database. When you refresh the map you can see it disappear.

The timestamp is the key information for resolving who has rights to an isolation area. If you change a pin from pushed to signed, you retain the original timestamp from when the pin was initially pushed. If you remove the pin, it is no longer visible on the map but continues to exist in the database. The original timestamp is lost when a pin is removed. There is a pull down list to change the status of the pin. Select the status you would like to change the pin to and then click on the Change button.

It may be helpful to quit out of our web browser completely and revisit the pin map if things get too confusing. Remember that dialog windows may become hidden behind the map graphics window. If you have additional problems with the pin map, please let us know so that we can improve the software and documentation.

Advanced Features

The pinmap has additional tools to assist in determining an isolation area. Layers can be buffered and queried. You are encouraged to experiment with these tools. Because of the complexity of their use, they are not covered in this documentation. Because it is easy to run a mis-specified query or buffer, we suggest you use them as aids only and do not rely on them when determining if an isolation area is available.

Overview Map

The overview map appears in the upper left corner of the screen. The area you are zoomed to is marked in red on this map.
You can zoom to a location using the overview map and zoom tool.
When viewing the pinmap, click on the tool that looks like this: to turn the overview map on or off.

How to Zoom to Township, Range, and Section

You must be zoomed in enough so that the Sections layer is visible on the right hand side of the screen. If not zoom in with the magnifying glass icon. It does not matter where you zoom in.
Click on the circle next to the Sections layer to make it Active.
Click on the picture of the binoculars (the Find tool) on the left side of the screen.
The Find dialog will appear at the bottom of the screen. There is a box that you can type text in. If the text box is not available, use the scroll bars to move it into view.
Type the township, range, and section in this format: T8R18S5
Substitute the legals of the section you are looking for. Do not use spaces and make sure that T, R, and S are capitalized.
Click on the Find String button or press enter.
The server will search for the section.
Once the server is done, you will see the section listed at the bottom of the screen.
Click on the blue underlined one and you will zoom to the section.
The section will be highlighted. If you want to make the section unhighlighted, click on the picture of the eraser on the left hand part of the screen.

Using the Integrated Crops Coverage

The new pinmap has combined all of the crops into a single layer. This is to streamline the map and to allow you to perform more complex queries.
Examples of possible complex queries are below:
- You could highlight all of the pins from a particular family and seedcompany.
- You could search for multiple crops.
- You could see all the pins associated with a single grower for all seed companies and the crops.
- You could buffer all of the crops of a particular family to double-check for possible cross pollenation.

Good luck and Enjoy!

For questions and suggestions concerning the pinmap instructions you can contact Dan Osgood at deo@ag.arizona.edu
